Daytona 2000 Multi-Packer
Overview

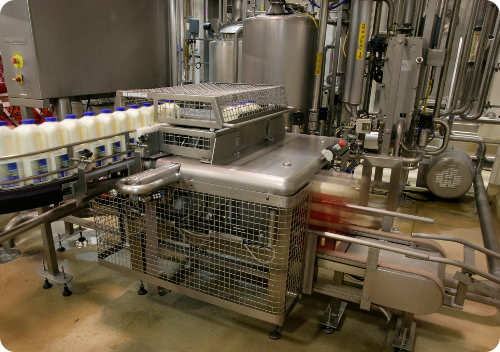

The Daytona 2000 Series Multi Packer is an automated electro-pneumatic multi size bottle or carton packing machine. The multi packer receives crates from a single lane crate infeed conveyor. Bottles or cartons are received from a single lane variable speed infeed conveyor.
Bottle type selection is achieved via a touch screen interface. The Daytona 2000 Series Multi Packer automatically adjusts pack size toolsets and pusher home positions for the desired bottle size.
The Daytona 2000 Series Multi Packer has a maximum throughput of 110 bottles per minute (dependent on bottle size).
Features
- Multi bottle size (square, round & cartons)
- Automated configuration
- Touch screen operation
- Adjustable conveyor system
- Data acquisition capabilities (fault analysis and machine status)
- Seamless factory integration
- Pneumatic proportional valve technology
General Specifications |
|
| Pneumatics: | Festo (or customer specification) |
| PLC and interface: | Allen Bradley (or customer specification) |
| Sensors: | ifm efector (or customer specification) |
| Speed: | 110 bottles per minute |
| Voltage: | 230volt/415volt 50/hz |
| Amps: | 20/12 amp |
| Weight: | 780kg |
| Air consumption: | 200 litres per minute @ 600 KPA maximum pressure |
| Maximum air flow: | 300 litres per minute |
| Dimensions: | 1600mm x 2700mm |
