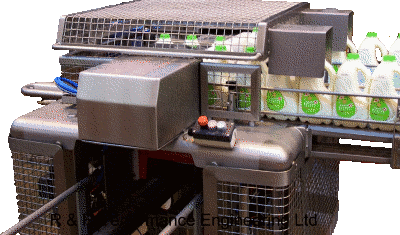

Daytona 2000 High Speed Packer
Overview
The Daytona 2000 Series High Speed Packer is a fully automated electro pneumatic bottle and carton packing machine. It is capable of packing cartons and up to three different bottle sizes.
The high speed packer receives crates from a single lane crate infeed conveyor. Bottles are supplied to the packer from a dual lane variable speed infeed conveyor. Innovative drop packing technology enables the Daytona 2000 Series High Speed Packer to reach a maximum throughput of 14 crates per minute (dependent on bottle size).
Features
- Flexible bottle size (square, round & cartons)
- Automated configuration and operation
- Touch screen operation (optional)
- Flexible conveyor system
- Data acquisition capabilities (fault analysis and machine status)
- Seamless factory integration
General Specifications |
|
| Pneumatics: | Festo (or customer specification) |
| PLC and interface: | Allen Bradley (or customer specification) |
| Sensors: | ifm efector (or customer specification) |
| Speed: | Up to 140 2 litre bottles per minute or 260 1 litre square bottles per minute |
| Bottle size: | 1 and 2 litre round and square bottles |
| Voltage: | 230 volts / 415 volts |
| Amps: | 20/12 amp |
| Weight: | 800 kg |
| Air consumption: | 200 litres per minute @ 600 KPA maximum pressure |
| Maximum air flow: | 300 litres per minute |
| Dimensions: | 1600mm x 2700mm x height to suit |
