Daytona 2000 Debagging Table

Overview

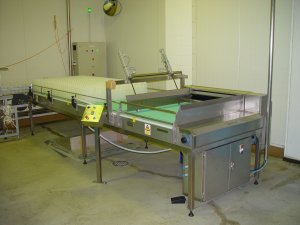

The Daytona 2000 Series Debagging Table is a semi automated electro pneumatic machine designed to remove sealed bags from bulk stored plastic bottles
and feeding these bottles onto bottle supply conveying systems.

The Debagging Table is manufactured with adjustable toolsets and guide rails
enabling the debagger to be used for multiple bottle sizes.

Features

  • Belt driven debagging table
  • Multi bottle size configuration
  • Horizontal take off belt
  • Automated hot wire knife and braking system
  • Automated roller brush and air jet system
  • Downstream flow control

General Specifications

Pneumatics: Festo (or customer specification)
PLC and interface: Allen Bradley (or customer specification)
Sensors: ifm efector (or customer specification)
Speed: 220 bottles per minute
Voltage: 230 volt/415 bolt 50/hz
Amps: 20/12 amp
Air consumption: 200 litres per minute @ 600 KPA maximum pressure
Maximum air flow: 300 litres per minute
